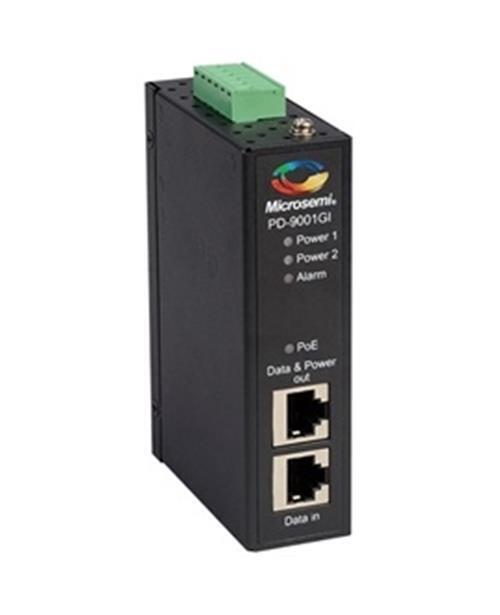

Microchip NT PD-9001GI DC Industrial 1PT 30W PoE Midspan dual DC input RTL

The single port PoE midspan provides up to 30 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for remote powering of current and emerging high power applications. The PD-9001GI enables remote power for a new range of applications including 802.11n access points¸ pan-tilt zoom (PTZ) cameras and other IP terminals. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE 802.3af. It can power both 10/100Base-T network devices and 1000Base-T devices. The midspan is designed for industrial applications and outdoor applications from temperature point of view.


Product Features

Number of ports: 1

PoE output: 30W

Data rates: 10/100/1000 Mbps

Power input: DC

Industrial rated: IP30

Regulatory compliance: IEEE 802.3at (PoE)¸ RoHS compliant¸ WEEE compliant¸ CE

EMI: EN50522 Class A¸ EN55024

Safety: UL 508

Shock: IEC 60068-2-27 15g¸ 11 ms duration

Freefall: IEC 60068-2-32

Vibration: IEC 60068-2-6¸ 3¸ 5 mm¸ 3 Hz - 9 Hz¸ 10 cycles¸ 1 octave/min¸ 1g¸ 9 Hz 150 Hz¸ 10 cycles 1 octave/min

Compact design.
