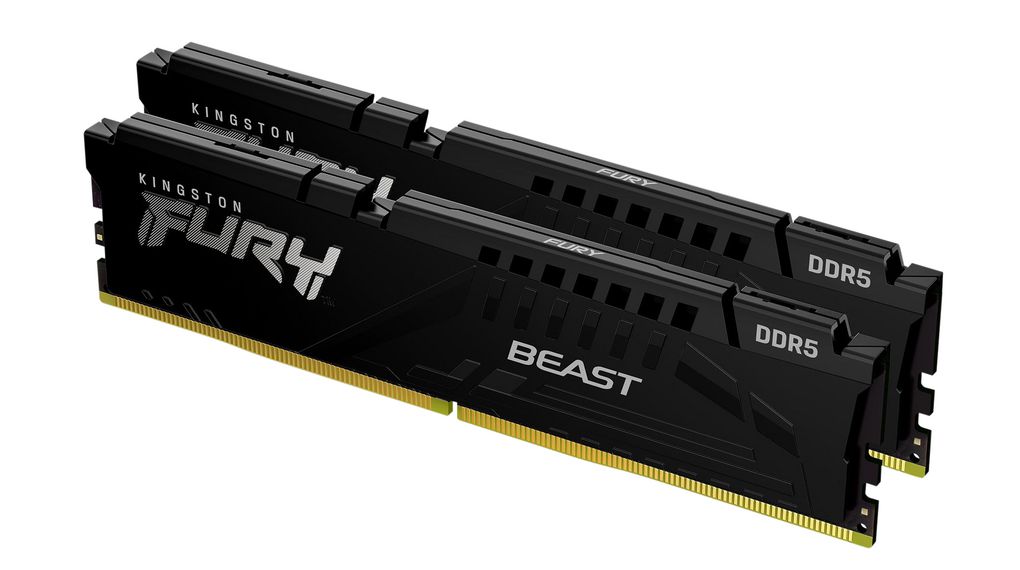

Kingston ME Kf556c40bbk2-64 64gb 5600mhz Ddr5 Cl40 Dimm K2 Fury Beast Black
Kingston ME Kf556c40bbk2-64 64gb 5600mhz Ddr5 Cl40 Dimm K2 Fury Beast Black
Regular price
$239.13 USD
Regular price
Sale price
$239.13 USD
Unit price
/
per
Couldn't load pickup availability
FURY KF556C40BBK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 2Rx8¸ memory module¸ based on sixteen 2G x 8-bit FBGA components per module.
Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V.
Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FEATURES
Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
Height 1.37 (34.9mm)¸ w/heatsink
Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V.
Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FEATURES
Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
Height 1.37 (34.9mm)¸ w/heatsink
