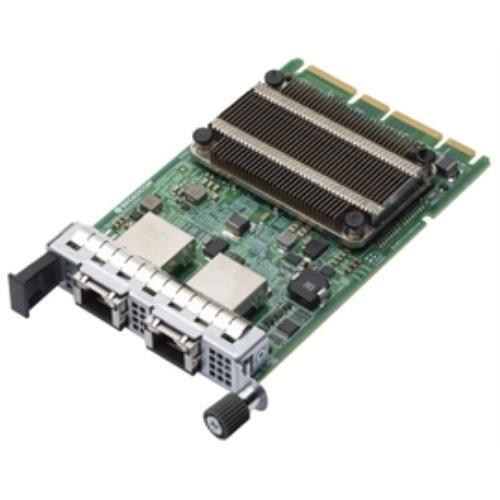

Broadcom NT BCM957416N4160C 10GBASE-T PCIE3.0 x8 OCP3.0 Small-FormFactor Card

Features

Dual Port 10 Gb/s 10GBASE-T interface:

10GBASE-T IEEE 802.3an.

1000BASE-T IEEE 802.3ab.

EEE on 10GBASE-T and 1000BASE-T.

Auto sense mode.

Detection and correction of pair swaps (MDI crossover)¸ pair skew¸ and pair polarity.

Auto-negotiation with next page support.

IEEE fast retrain and link monitoring.

x8 PCI Express 3.0 compliant.

SR-IOV with up to 128 virtual functions (VFs).

Function-Level Reset (FLR) support.

TruFlow flow processing engine.

Virtual Network Termination XVXLAN¸ NVGRE¸ Geneve¸ GRE encap/decap.

vSwitch Acceleration.

Tunnel-aware stateless offloads.

DCB support PFC¸ ETS¸ QCN¸ DCBx.

RDMA over Converged Ethernet (RoCE)

Network Controller Sideband Interface (NC-SI).

SMBus 2.0.

MCTP over SMBus.

PCIe-based UART and KCS.

Jumbo frames up to 9 KB.

Advanced congestion avoidance.

Multiqueue¸ NetQueue¸ and VMQ.

IPv4 and IPv6 offloads.

TCP¸ UDP¸ and IP checksum offloads.

Large send offload (LSO).

Large receive offload (LRO).

TCP segmentation offload (TSO).

Receive-side scaling (RSS).

Transmit-side scaling (TSS).

VLAN insertion/removal.

Interrupt coalescing.

Network boot PXE¸ UEFI.

iSCSI boot.

Wake-on-LAN (WOL).

MSI and MSI-X.

Conforms to the OCP 3.0 Design Specification Version 1.00.
